Carbide Draw Dies- Shape

Carbide Draw Dies- Shape

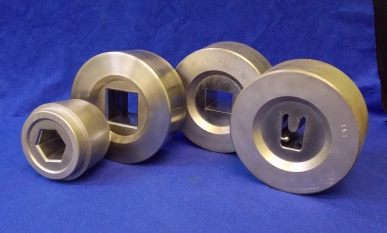

Glen Carbide is the industry leader in manufacturing precision carbide shape dies for cold drawing wire, bar, and tube. The latest technology, from CAD/CAM systems to wire EDM to coordinate measuring machines, are used to custom design and manufacture your dies. From the smallest most intricate wire shape to complex bar and tube shapes, Glen Carbide dies can be relied upon to draw the shape you want within the tolerance required. Special coatings like titanium nitride/titanium carbide or vanadium carbide are available on request to further enhance die life.

Hex Dies

Hex Dies

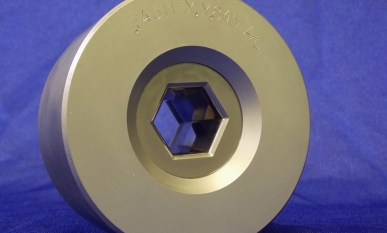

Finished standard hexagon dies are manufactured from our large inventory of EDM die blanks. Special hexagon die profiles requiring extra tall die blanks are designed and manufactured to suit the application and material being drawn. Four axis EDM technology is utilized to enable the drawing of hexagon shapes from round entry stock in one or more draw passes eliminating the need for hexagon shaped starting material.

Hex Die Drawing Straight Case
Hex Die Drawing Tapered Case
Square Dies

Square Dies

Finished standard square dies are manufactured from our large inventory of EDM die blanks. Special square die profiles requiring extra tall die blanks are designed and manufactured to suit the application and material being drawn. Four axis EDM technology is utilized to enable the drawing of square shapes from round entry stock in one or more draw passes eliminating the need for square shaped starting material.

Square Die Drawing Straight Case
Square Die Drawing Tapered Case
Rectangle Dies

Rectangle Dies

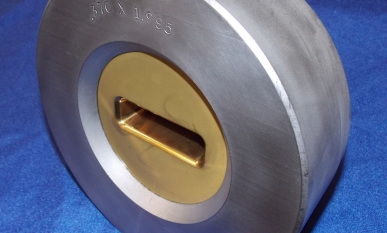

Finished standard rectangle dies are manufactured from our large inventory of EDM die blanks. Special rectangle die profiles requiring extra tall die blanks are designed and manufactured to suit the application and material being drawn. Four axis EDM technology is utilized to enable the design of custom die reduction contours to accept the starting shape and draw in one or more passes as required.

Rectangle Die Drawing Straight Case
Rectangle Die Drawing Tapered Case
Special Shapes Dies

Special Shapes Dies

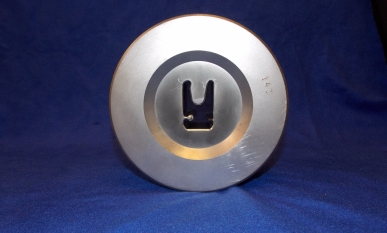

Finished special shape dies are manufactured from our large inventory of EDM die blanks. Special die profiles requiring extra tall die blanks are designed and manufactured to suit the application and material being drawn. The latest 3D CAD software and EDM technology is used to design single or multiple draw passes to achieve the final shape and tolerance required.
